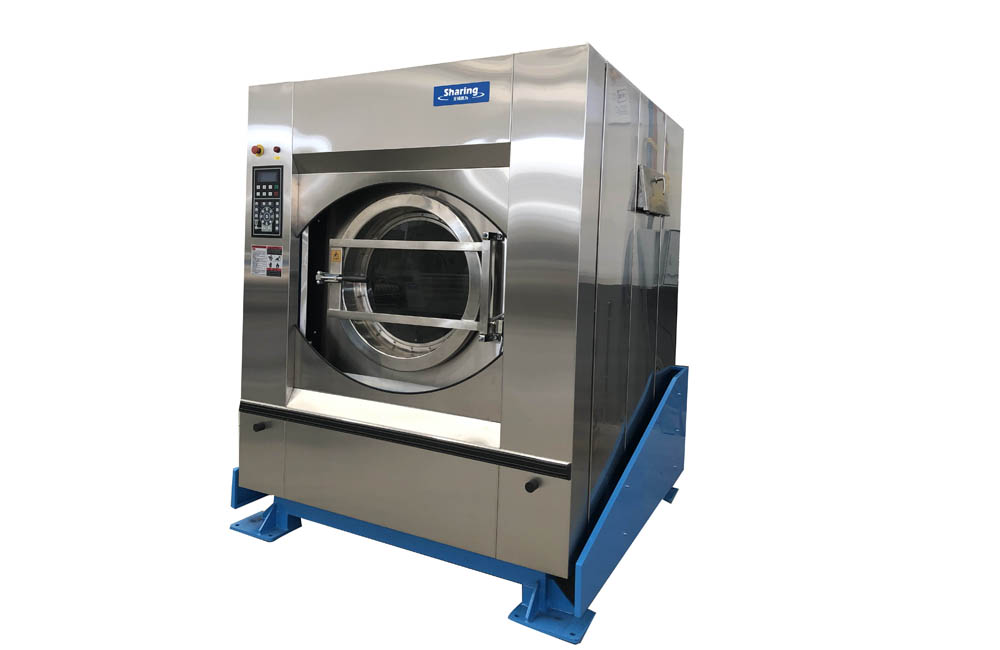

TILTING WASHER EXTRACTOR
TILTING WASHER EXTRACTOR
TILTING WASHER EXTRACTOR
TILTING WASHER EXTRACTOR
TILTING WASHER EXTRACTOR
  • Features
  • Specification
  • 1.Our tilting washer extractor is soft mount integrates mature laundry equipment technology, high-quality materials and excellent workmanship to ensure the overall performance of the equipment.

    2.Airbag lifting structure, equipped with position detection and self-locking device, convenient and reliable to use.

    3.additional with positive and negative jog buttons to ensure the safety of operators.

    4.Reasonable forward tilt angle and large size door, to ensure that the discharge is completed within 30 seconds.

    5.The drum adopts the flat hole process, the density is high, and the V-shaped ribs adopt the punching design at the same time, which greatly improves the washing degree of the cloth.

    6.High anti-corrosion performance, the outer cylinder and water contact part is made of high quality stainless steel, and the service life is longer.

    7.Low-frequency all-steel weight design, better shock absorption effect, no need for special foundation, easy to install.

    8.Soap tank with 5 detergent separators, unique tilt stainless steel soap door to avoid material leakage.

    9.High eccentric load accelerated life test, to ensure that the structural parts of the equipment have a long life and a longer service life.

    10.Narrow-shaped sink design, effectively reduce the volume of invalid water, while saving chemical materials, more energy efficient.

    11.300G dehydration force, standard two-way water, effectively reduce the water and drying time, more efficient.

    12.Anti-offset ability, high drying success rate, effectively reducing the repetition time, more time-saving.

    13.Comprehensive safety control, pressure water level detection, improve work reliability.

    14.Germany imported V-type seals and other high-quality devices to further improve equipment stability.

    15.Multi-function microcomputer processing controller, 30 sets of editable programs, full-featured, and provide software upgrades and USB functions.

Model

Unit

XGQ-100T

XGQ-130T

Capacity

Kg

100

130

Volume

L

1014

1300

Drum Size

mm

1240x840

1300x980

Power Supply

V/Ph/Hz

220V/60Hz, 380V/50Hz,415V/50Hz

Inverter Power

Kw

11

15

Motor Power

Kw

7.5

11

Multilingual Microprocessor

30 programmable + maunal

Washing Speed

Rpm

32

32

Spin Speed

Rpm

650

640

G-factor

G-factor

300

300

Stainless Steel AISI 304

Standard

Standard

Steam Pressure

bar

4-6

4-6

Cold Water Inlet

Inch

11/2

11/2

Hot Water Inlet

Inch

11/2

11/2

Steam Inlet

Inch

1

1

Recycling Drain-optional

Inch

11/2

-

Drain

mm

140

140

Compression Air Inlet

mm

∮8

∮8

Weight

Kg

3500

4200

Dimension(Width/Depth/Height)

mm

1810X2010X2340

1870X2130X2340
