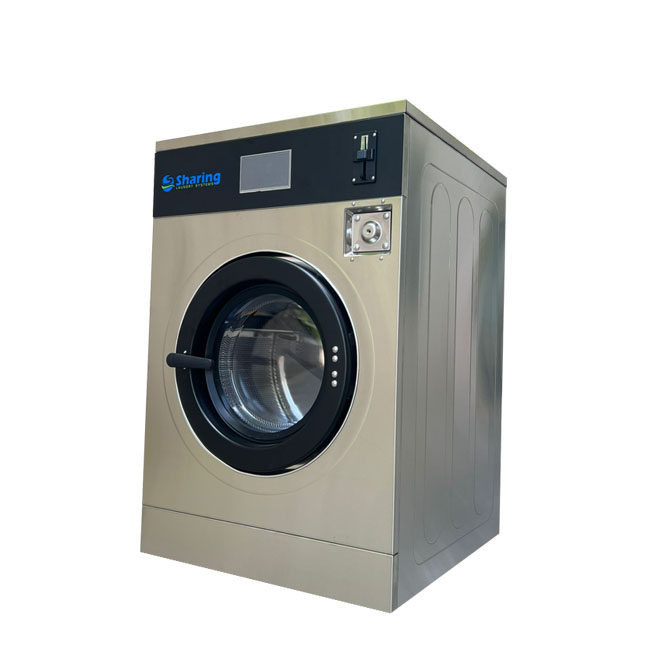

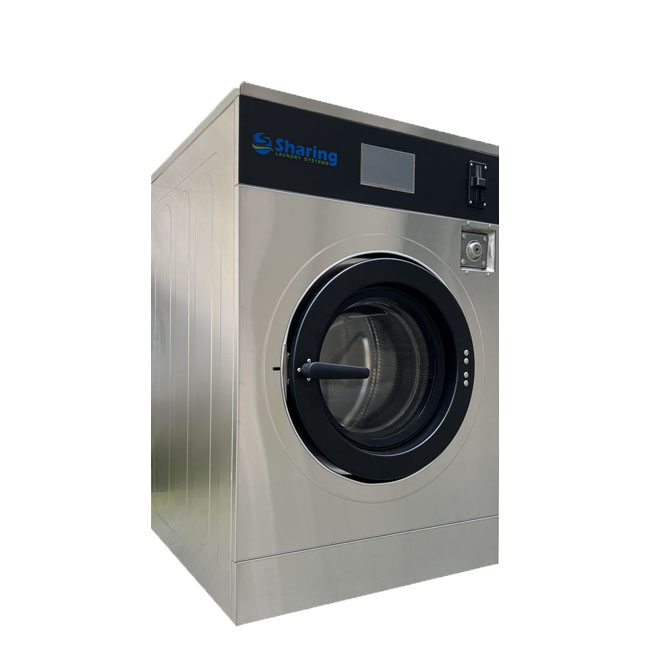

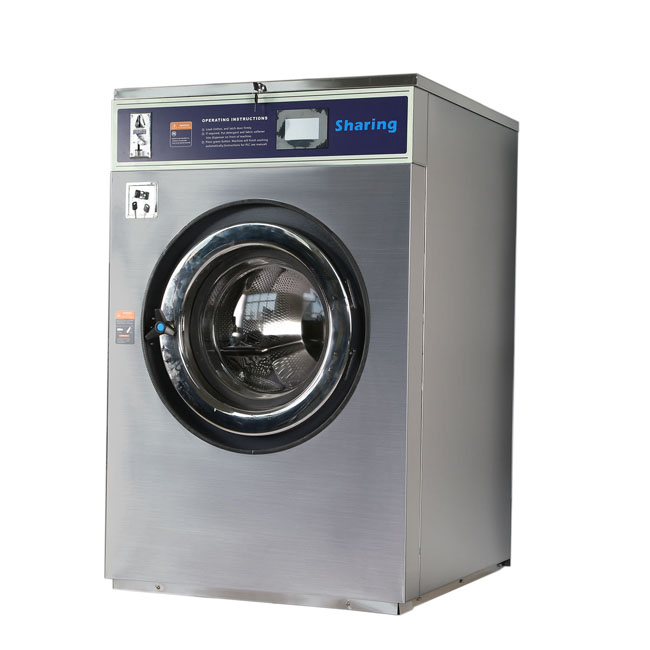

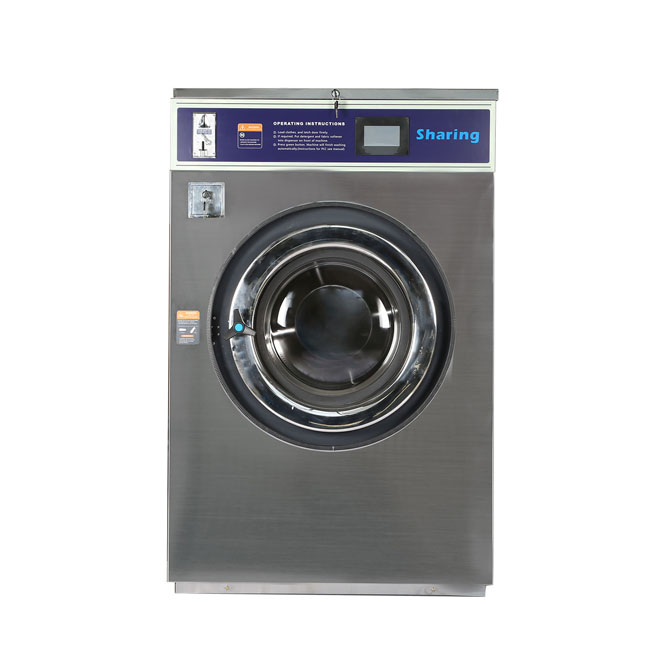

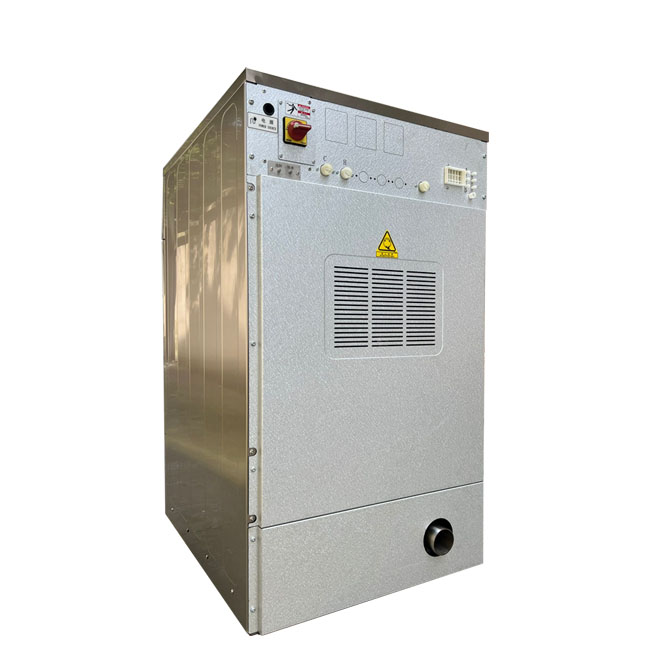

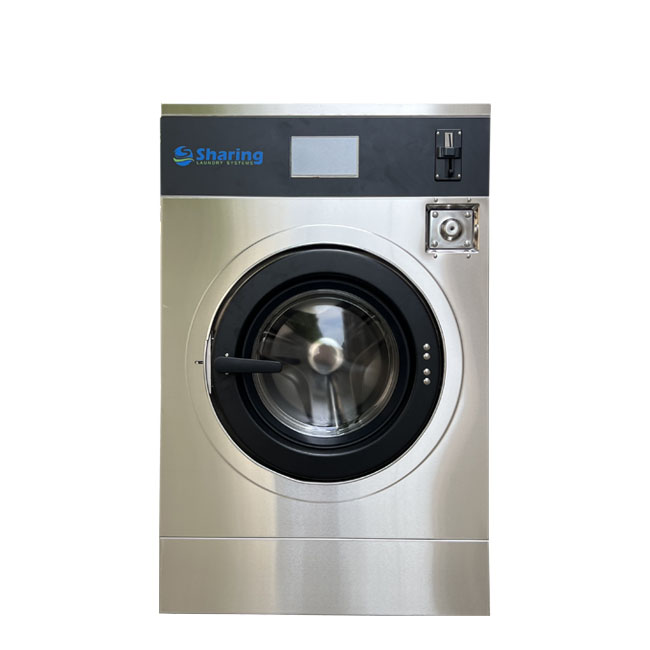

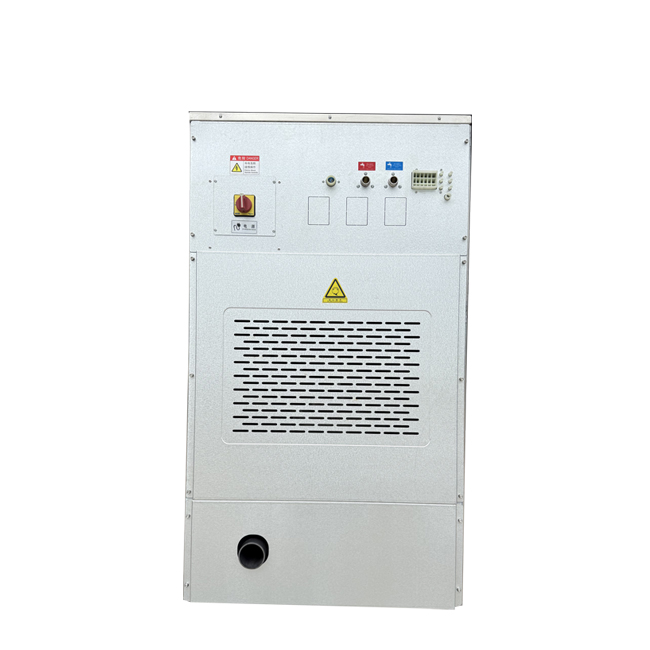

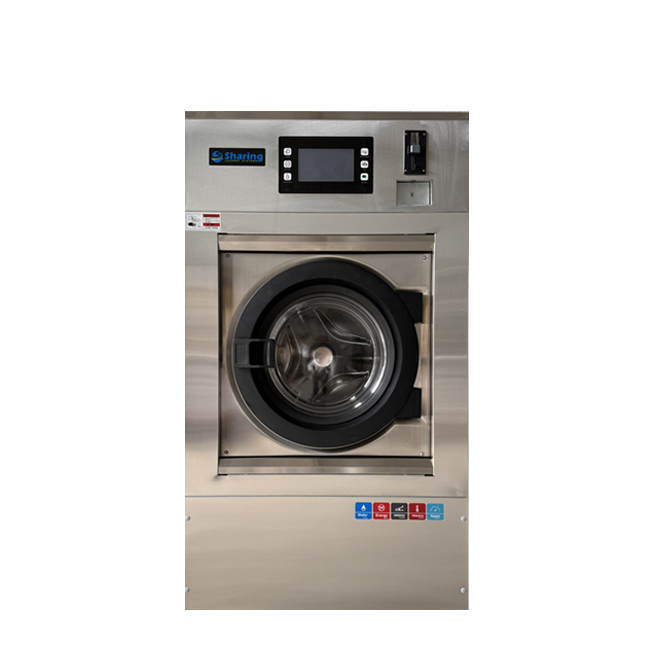

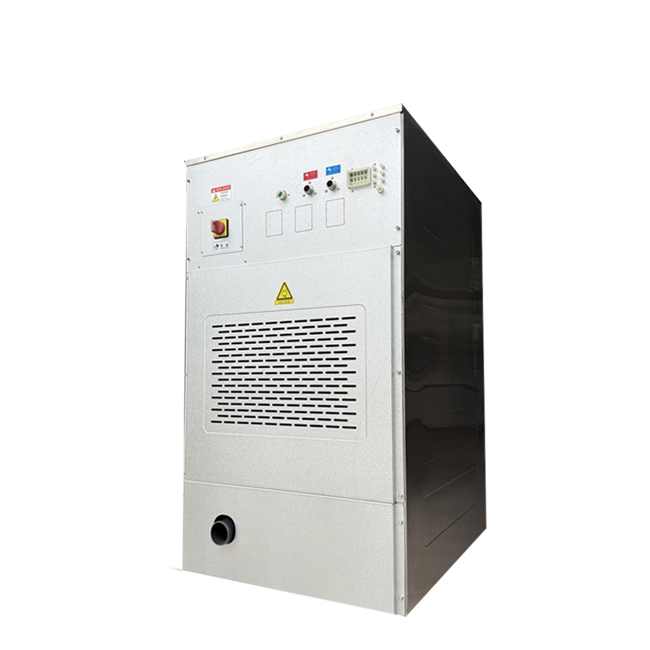

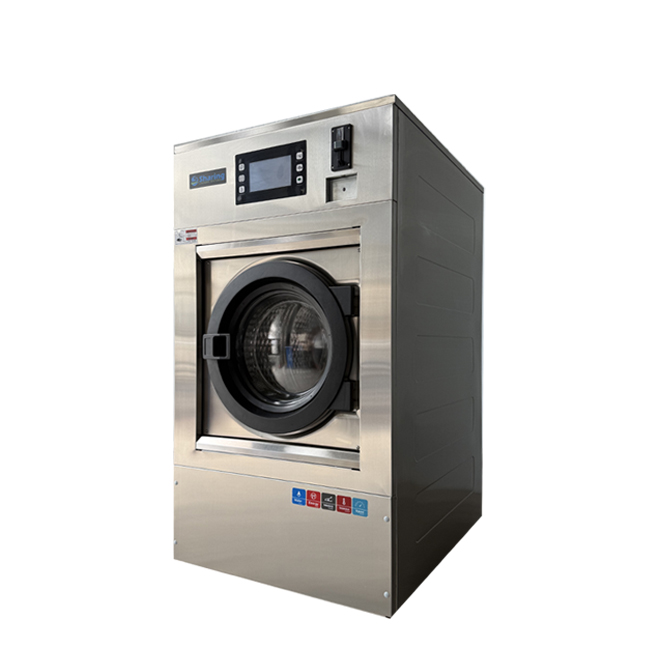

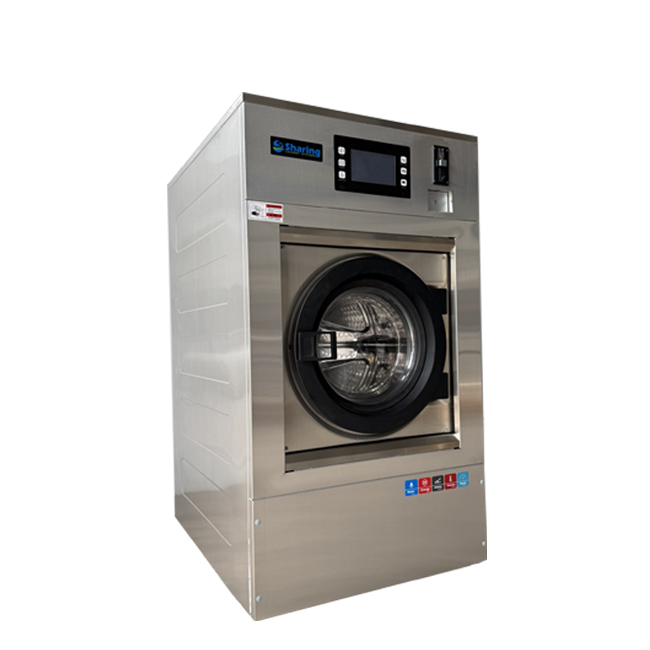

Coin Operated Washing Machine

Category:

Description

1. The inner and outer drums of our coin-operated washing machine are all imported mirror stainless steel. The inner cage adopts the internationally advanced seamless spinning process, with no welding, the first in China, the strength is doubled, and it is durable.

2. Alloy material pulley, light and beautiful, super high strength. The grooveless V-ribbed belt design is more than several times the life of ordinary belts.

3. FMS suspension damping system, without any fixed, ultra-low vibration.

4. High quality Japan NSK bearings and shaft seals, longer service life.

5. The inner and outer drum gap is small, and heating and heating speed is fast, saving water and electricity.

6. The frequency conversion speed control can meet the speed’s linear climb and high-speed requirements, low noise and good stability.

7. The pipeline connection adopts the soft contact of imported anti-corrosion rubber from South Korea, which has small vibration, strong stability and doubled life.

8. The cage door is large, and it is easy to load clothes.

9. High-quality stainless steel heating tube, ring attached to the wall of the barrel, fast heat transfer, long service life.

10. Advanced drainage control system, accurate and easy to operate.

Technical Parameters

MODEL UNIT SWE12H SWE15H SWE20H SWE27H
Capacity kg 12 15 20 27
lbs 28 33 44 60
DRUM
Diameter mm 650 650 650 750
Depth mm 340 426 560 590
Volume L 112 141 186 261
Door diameter mm 440 440 440 440
Washing speed R/min 40 40 40 38
Middle spinning speed R/min 450 440 440 430
High spinning speed R/min 700 700 700 650
ELECTRIC
Power specifications V/Hz/P 220V-60Hz;3N+PE, 380/415V-50Hz;3N+PE
Motor power Kw 1.5 1.5 2.2 3
HEATING
 Heating power Kw 12 12 16 20
Power consumption Kw 0.6 0.6 0.9 1.2
WATER
Cold water inlet inch 3/4 3/4 3/4 3/4
Hot water inlet inch 3/4 3/4 3/4 3/4
Drainage diameter inch 3 3 3 3
Water consumption L 40 50 60 80
DIMENSIONS
Width mm 800 800 800 950
Depth mm 850 950 1030 1150
Height mm 1420 1420 1430 1450
Weight kg 265 285 310 400
Control OPL/Coin Operated
