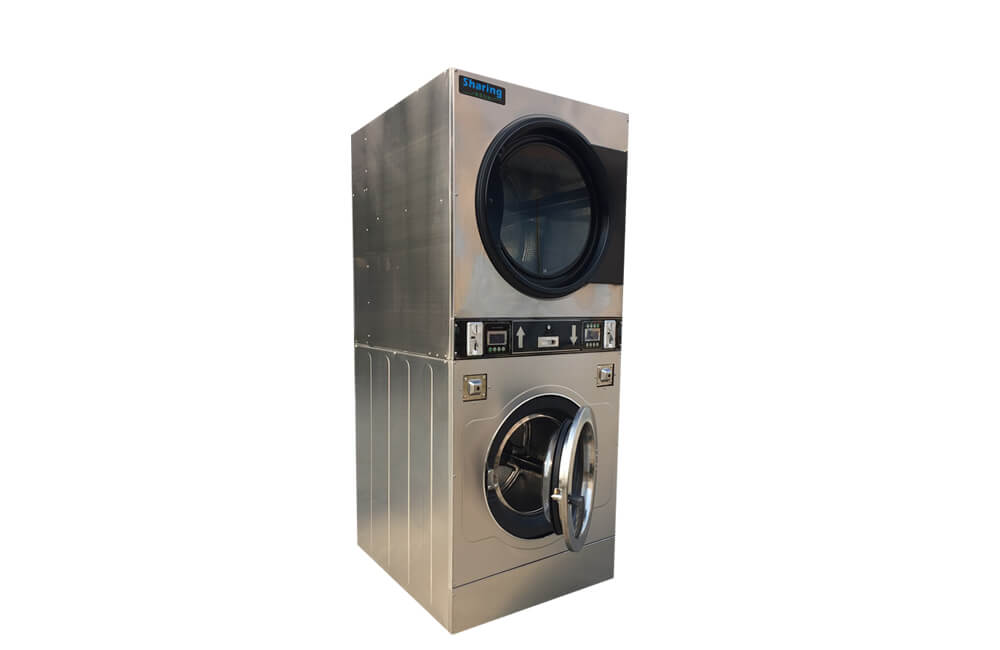

●The commercial washer and dryer is developed based on the organic integration of the washing machine, extracting and the dryer, and realizes the multi-purpose of one machine.
●Washing and extracting or drying may run at the same time . It consists of two parts----the upper part and the lower part.
●Heating method: Electric/ Steam/Gas three choices.
●Washing, extracting and drying are all controlled by computer board. One machine completely replaces the traditional two machines of the washing machine and the dryer.
●The structure of the whole machine is reasonable and compact, saving floor space. The dryer adopts the axial air intake form to more effectively utilize the heat energy, shorten the drying time, and utilize the heat energy more effectively than the traditional radial air inlet mode, thereby reducing the drying time and saving the cost.
●The double-layer structure occupies a small space, is easy to move, and is easy to maintain.
- Mobile: +86-51066206136
- E-mail: info@wuxisharing.com
|
Model |
Unit |
SWD-12 |
SWD-15 |
|
Washing Capacity |
Kg |
12 |
15 |
|
Capacity of dry clothes |
Kg |
12 |
15 |
|
Voltage |
V |
AC220V/380V/415V/50Hz |
AC220V/380V/415V/50Hz |
|
Washing Speed |
rpm |
45 |
45 |
|
Distribution Speed |
rpm |
60 |
60 |
|
High Extract Speed |
rpm |
900 |
900 |
|
Washing Motor Power |
Kw |
0.9 |
1.5 |
|
Dryer Motor Power |
Kw |
0.12 |
0.14 |
|
Blower Power |
Kw |
0.12 |
0.13 |
|
Power of Dryer Heater |
Kw |
220V 9/380V 14/415V 14 |
220V 9/380V 14/415V 14 |
|
Power of Washer Heater |
Kw |
3 |
7 |
|
Installed Capacity |
Kw |
220v 10 14/380V 15 14 |
220v 10 14/380V 15 14 |
|
Water Consumption |
L/h |
200 |
240 |
|
Steam Consumption |
Kg/h |
≦15 |
≦18 |
|
Steam Pressure |
Mpa |
0.4-0.6 |
0.4-0.6 |
|
Cold Water Inlet |
mm |
Ф20 |
Ф20 |
|
Steam Inlet |
mm |
Ф15 |
Ф15 |
|
Water Drain |
mm |
Ф50 |
Ф50 |
|
Weight |
Kg |
470 |
600 |
|
Dimension |
mm |
880X857X1888 |
908X986X2217 |
